Give Tension a Smart Brain

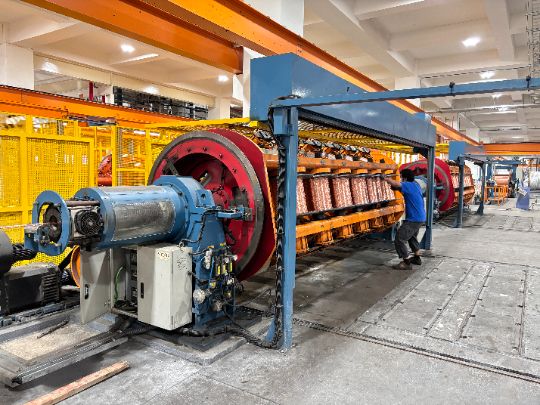

ST Series Rigid Stranding Machine

The ST Series rigid stranding machine adopts a working without back twist design, engineered for stranding copper and aluminum conductors (both round and sector-shaped), as well as steel wire armouring (SWA) of insulated cables.

Stability Beyond Mechanics —

A Power Safety Architecture

The system integrates a UPS (Uninterruptible Power Supply) with an Energy Recycling System.In the event of unexpected power loss, the rotational inertia of the stranding cage is converted into DC power to supply the entire line, enabling synchronized deceleration and stopping, and preventing low-inertia machines from stopping prematurely and causing desynchronization.


Benefits：

  • Prevents strand damage
  • Eliminates wire break dragging through dies
  • Reduces scrap and downtime costs

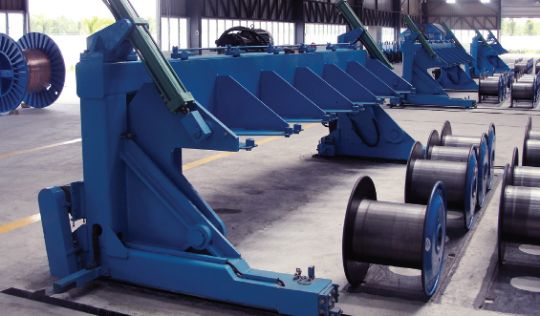

Flexible Configuration for Plant Layout Integration

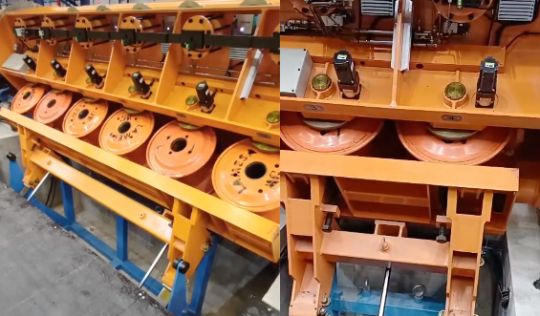

Front-side and 45° underground loading options for flexible line integration.

Front-side loading
45° underground loading

Evolution of Tension Control


Tension quality defines conductor quality. We redefine tension control instead of inheriting its limitations.

Generation 1: Pneumatic Brake

  • Advantages: High tension, low cost
  • Limitations: Wear, friction variability, no individual shaft control

Generation 2: Hysteresis Brake
  • Advantages: Non-contact, improved stability
  • Limitations: Higher cost, lag limits dynamic accuracy

The question is:
Can high precision and high tension coexist?

The answer: digital control.

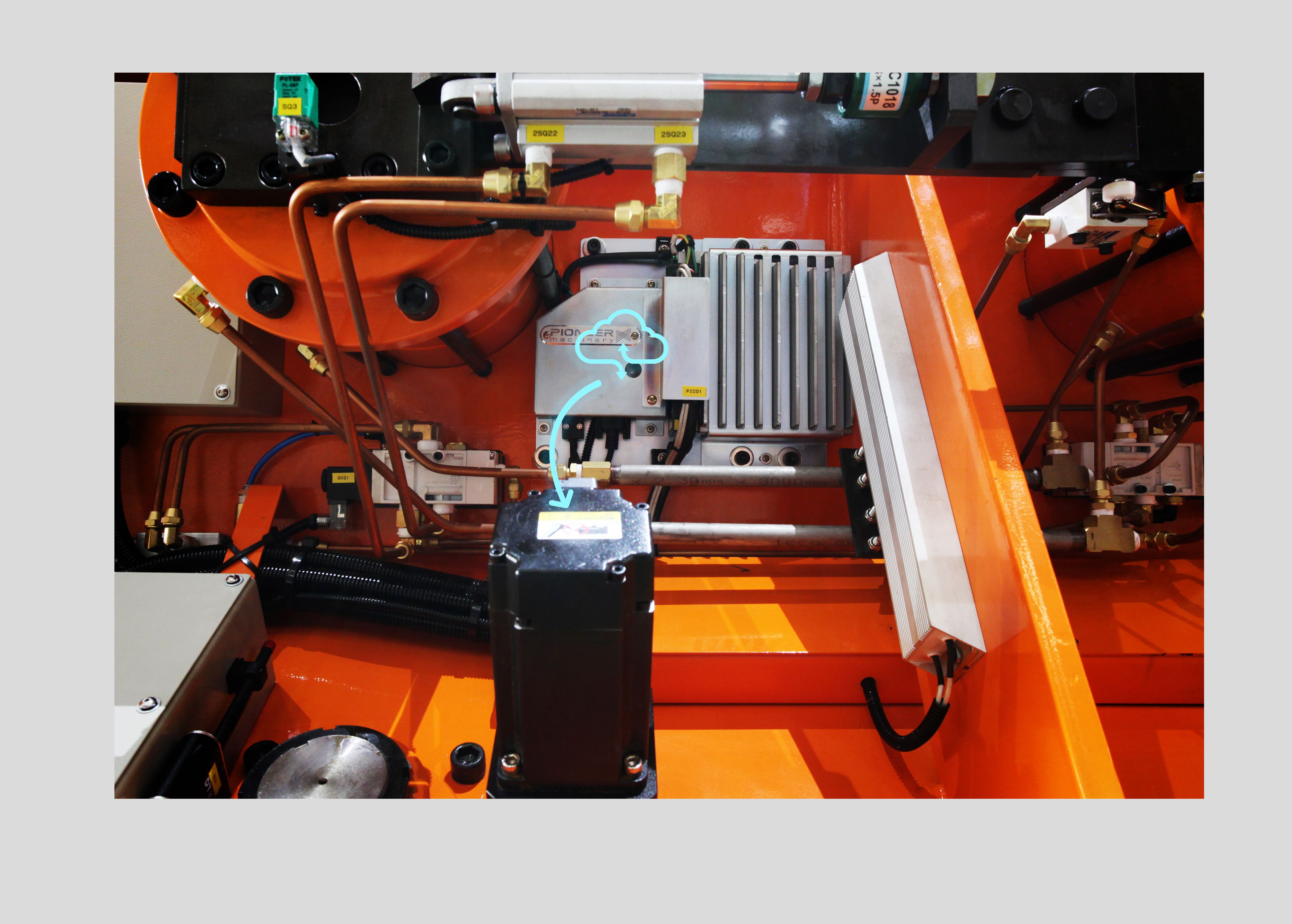

ServoEdge™

Servo Motor Precision Tension Control System

Active Direct Drive Control

Each shaft is driven by an active servo motor, enabling independent tension control.During payoff change, the system actively reverses to tighten loose wires.

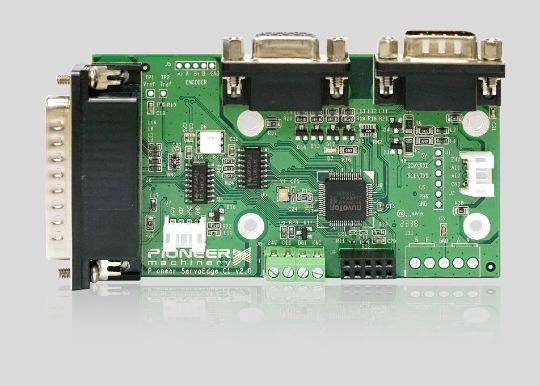

Edge Computing Closed-Loop Control
Powered by a proprietary edge computing processor, enabling real-time torque control via closed-loop algorithms.

Digital Twin Modeling
Real-time calculation of spool diameter, acceleration, and inertia enables dynamic torque compensation for near-perfect constant tension.

Microsecond-Level Break Detection
Differential algorithms detect wire breaks within microseconds and trigger immediate stop.This significantly reduces braking distance and minimizes scrap and downtime.

Designed for high-precision applications such as:

Class 5 flexible conductors / Optical / control cables / Composite cables / EHV cable copper shielding

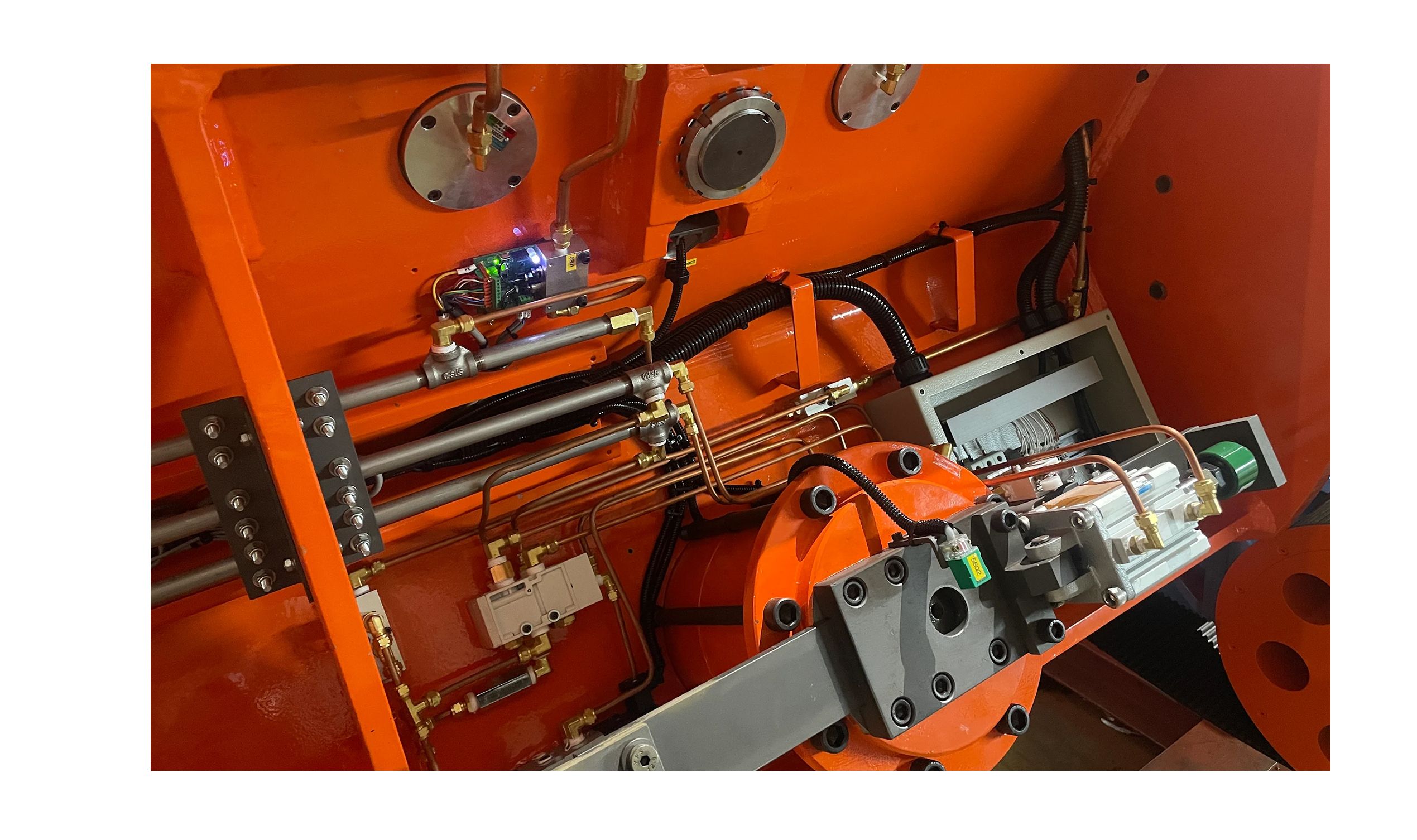

RigidEdge™

Intelligent Pneumatic Tension Control System

High-Torque Pneumatic Disc Brake

Maintains the high tension capacity and rigidity of pneumatic systems.

Digital Intelligence Embedded into Pneumatics
Overcomes the limitation of single-source pressure control across multiple shafts.

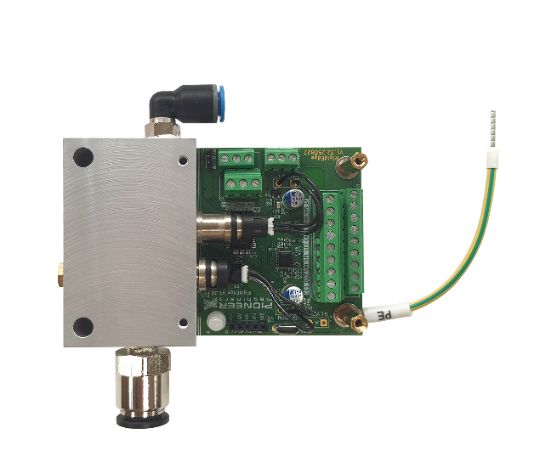

Independent Control & Proportional Valves
Each shaft is independently controlled with dedicated computation and pressure regulation.

Dynamic Physical Modeling & Auto Adjustment
Real-time spool measurement and inertia calculation enable automatic tension adjustment.

The result:
Servo-level precision with pneumatic-level power.

Designed for heavy-duty conductors and armouring applications.

Large cross-section conductors / Submarine power cables / Steel wire armouring (SWA)

No More Trade-offs

We don’t force a single solution.
We deliver the right control philosophy for each physical reality.

ApplicationRecommended Solution
High precision, small conductorsServoEdge™
Heavy-duty, high tension, armouringRigidEdge™

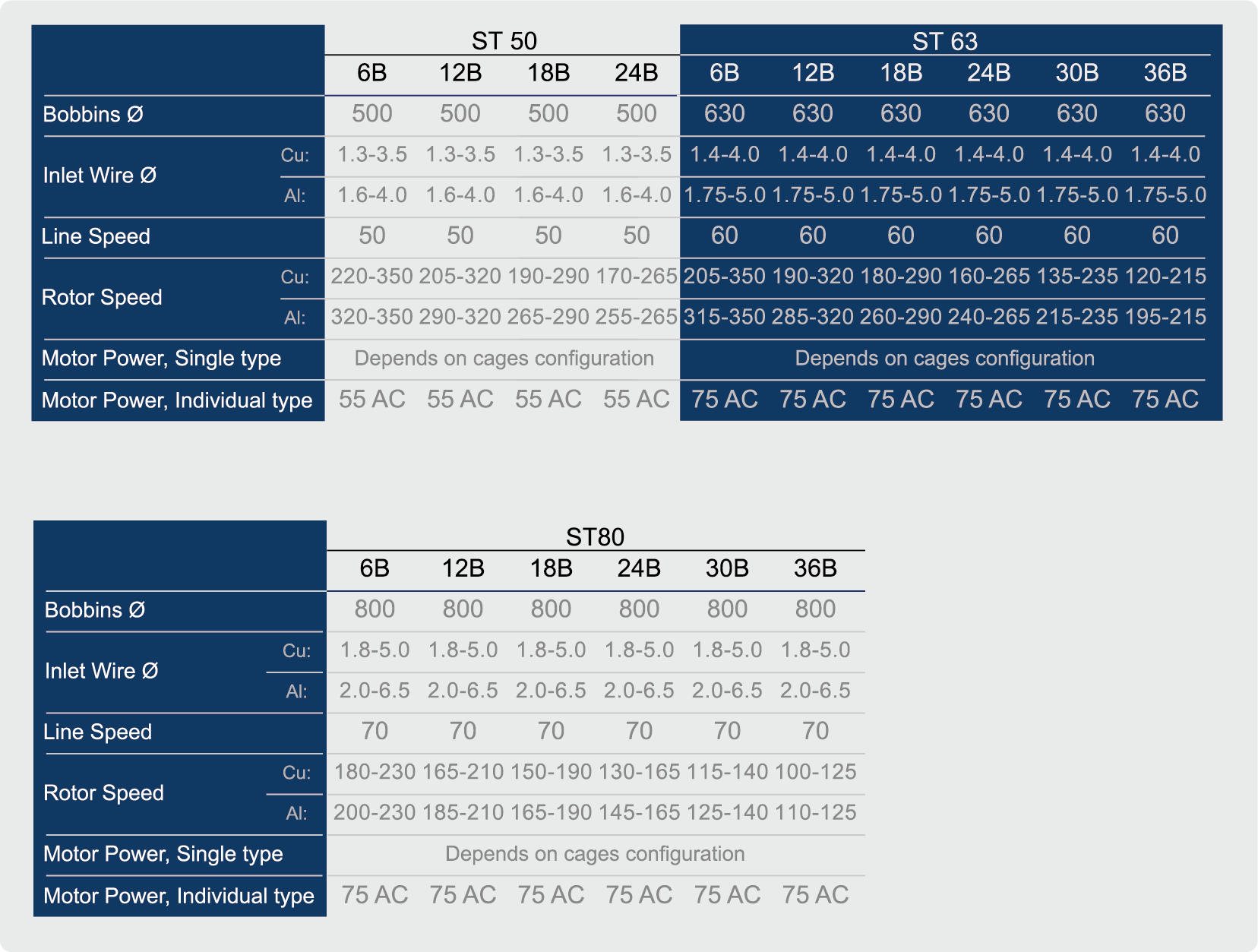

Specifications
